What’s new in INTERsoft-INTELLICAD PLUS 2026 ?
INTERsoft-INTELLICAD PLUS 2026 software has all the features of the INTERsoft-INTELLICAD 2026 software and, in addition, is enhanced with the following functions:

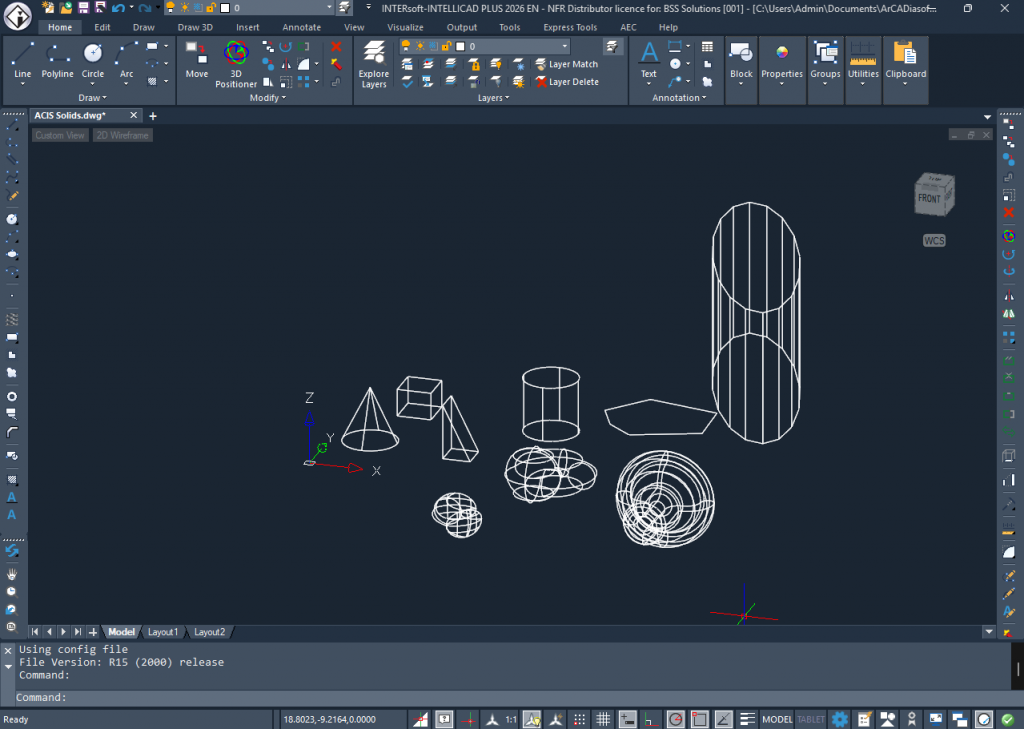

- The option to create and fully edit ACIS solids. ACIS files are based on the block modelling format developed by Spatial Technology Inc.
- It allows for precise work on full solids, penetration, sums, differences, etc.
- File import and export in the SAT format.
- New Dark Theme Interface
- QR Code Support
- Enhanced Table and MTEXT Editing
- BIM and Format Updates for Revit 2025 formats and new SVG import capabilities
- Mapping updates with Esri imagery now supported in the GEO command
- Performance boosts with commands like Copy to Clipboard (30x faster) and Break (12x)
- New LISP property functions: dumpallproperties, getpropertyvalue, setpropertyvalue, and ispropertyreadonly
- Blocks- Improved workflow when using the Attribute Editor dialog box
- New Unicode fonts
- Turn automatic stacking of multiline text on or off
- New system variables – ANNOSCALEPANEMODE, BDEPENDENCYHIGHLIGHT, CMDROLLOVEROPACITY, ISAVECOUNT, MTEXTAUTOSTACK, PROXYNOTICE, QCDECIMALSEPARATOR, STATBARMENUMODE, and TEMPOVERRIDES.
System requirements:
Intel Core i3 or AMD Ryzen 3 processor (Intel Core i7 recommended or AMD Ryzen 5 ZEN2); 8GB RAM minimum (16GB recommended);
About 4GB free hard disc space for installation (SSD recommended);
For a basic 3D view a graphics card compatible with DirectX 9.0c 4GB RAM;
System: WIN 10 (Windows 10 64-bit recommended), WIN 11 (Windows 11 64-bit recommended)
